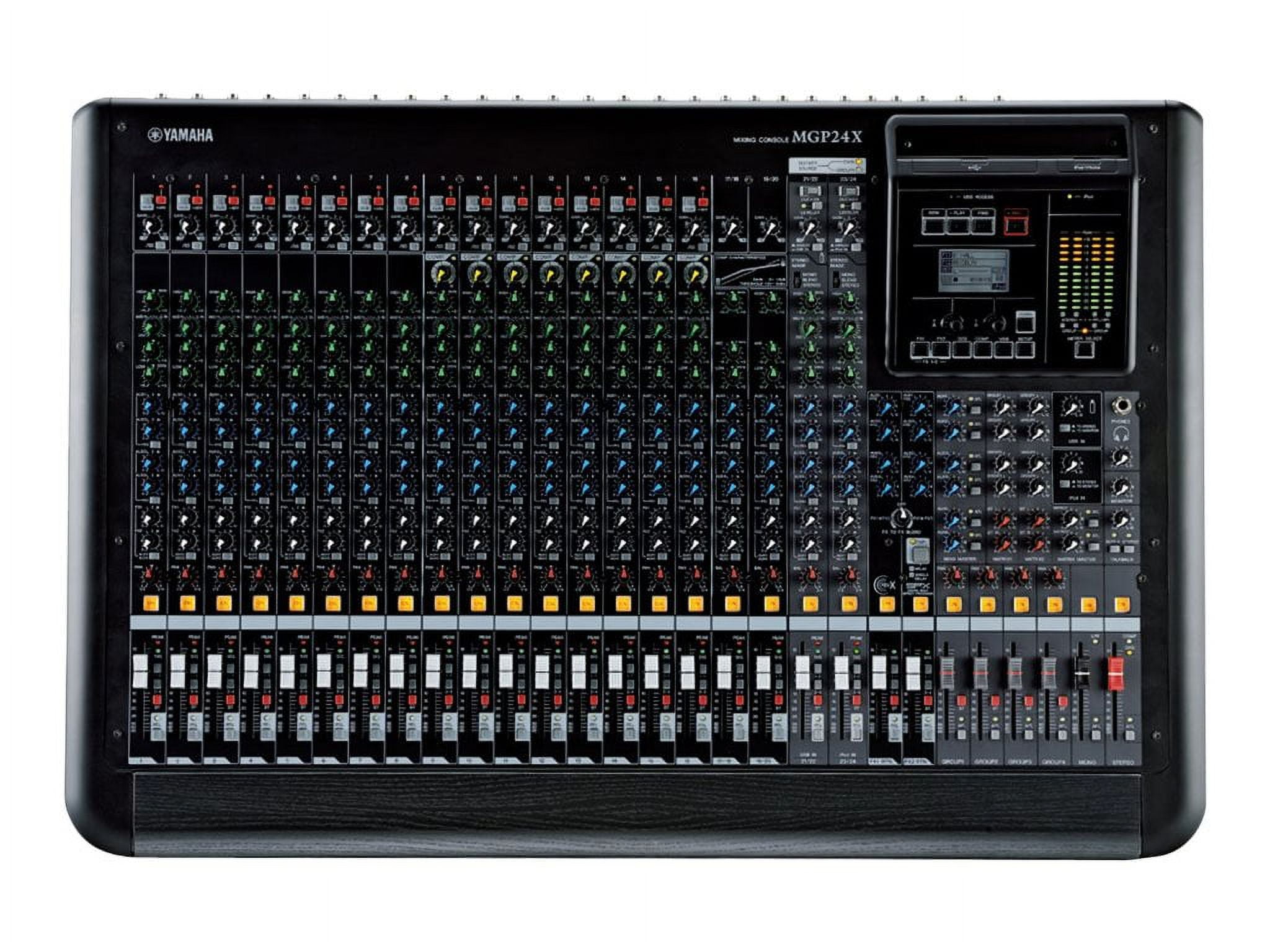

Yamaha MGP24X - Analog mixer with dual DSP FX - 24-channel - rack-mountable

Yamaha MGP24X analog mixer - 24-channel

Key Features and Benefits:

• D-PRE
  The preamp is where sound creation begins, and ultimately determines the character and quality of your overall mix. The studio-grade, discrete Class-A mic preamps employ an inverted circuit design that features multiple circuitry elements in a multi-layered configuration in order to deliver more power with lower impedance. This means all the character, depth and feel of your original signal will be delivered with fat, natural sounding bass and smooth, soaring highs. Rediscover a favorite mic or trusted instrument by capturing the full range of your musical expression with sound that you don't hear, so much as feel. With optimal phantom power for each channel and a sound that is incomparable in a compact mixer today, these studio-grade discrete Class-A mic preamps set the MGP apart, clearly defining a class all its own.
• 1-knob compressors
  1-knob compression is a popular feature on an increasing number of compact mixing consoles with good reason. These intelligent compressors add optimally set compression to a wide variety of input sources with the touch of a single control - minus the hassle of setting up and configuring complex outboard gear. The MGP features 1-knob compressors that feature LED indicators allowing you to visually monitor when the compression "kicks in" on each channel.
• Internal universal power supply
  With its multi-voltage design, the MGP ensures worry-free operation in potentially damaging environments with fluctuating power levels. An internal power supply also simplifies rack mounting of the console at installed applications, with no use for a bulky adapter or additional connections.
• Hybrid Channel more than just digital - it's hybrid
  Beneath the analog-style knobs and encoders of MGP series mixing consoles lies a sophisticated digital control system - a fusion that combines traditional analog feel with the functionality that only digital technology can offer. The MGP series utilizes a powerful, proprietary DSP to provide three essential features that are staples of both installed and live sound applications. In keeping with the theme of analog simplicity found throughout the MGP series design, each of these functions is readily accessible and available at the touch of a button. Featuring a mid-sweep, three-band EQ for nuanced sound control and high-performance onboard A/D and D/A converters, the Stereo Hybrid Channel feature offers unique functionality with superior sound.
• Priority Ducker
  An invaluable feature for applications that require both public speaking and background music, Priority Ducker allows a microphone to take priority over another sound source automatically, just by speaking into the mic. Stop talking and the other sound source is brought back to its original level, therefore no console operator is required for this simple yet valuable function. You can even adjust the ducker attenuation of sound source depending on your preferences.
• Leveler
  This intelligent compressor "auto levels" different tracks from a sound source that vary in volume, providing a more pleasurable listening experience. Ideal for small events with unmanned operation of your console, Yamaha's DSP algorithm allows for extended play time without the worry of fluctuating volume levels distracting your listeners.
• Stereo image
  The Stereo Image function seamlessly narrows the pan balance of the stereo sound source so that audiences spread over a wide area can enjoy a comfortably blended mix. This is particularly helpful for installed sound applications that requires background music. Using either of the two optimized settings - MONO and BLEND - Stereo Image ensures that everyone is in the "sweet spot" by providing a more optimally mixed sound to the entire space.
• Dual digital effects
  MGP series mixing consoles offer two separate studio-grade effects processors for ultimate enhancement of your sound, with simple intuitive control. Yamaha's REV-X reverb offers three very musical and natural high-resolution reverb effects. For more sound-shaping possibilities, Yamaha's renowned SPX digital multi-effect processor provides a useful selection of 16 advanced digital effects with editable parameters. Both processors can be used simultaneously, giving you a vast array of tools to color your sound.
• High-quality digital playback
  The MGP series mixers feature a built-in USB port to connect and charge your music player or smartphone for seamless playback with a single connection. A direct digital connection offers a much higher level of quality with more detail and clarity than typical analog inputs can provide.
• Graphic EQ
  The Graphic EQ feature 14 band and flex 9 band modes that can easily be controlled via internal display. By limiting the number of bands for boost and cut, the extra DSP can be employed to narrow the filters to 1/3 octave, and allow the user to sweep the filter to the range where adjustment is required. With 31 different filter positions, very fine adjustments can be made. Additionally, finding and reducing feedback is quick and easy using the offset / gain controls to point out vulnerable frequencies before the feedback occurs.
• Multi-band compressor
  The MGP24X are equipped with a master compressor on the stereo bus. Both a standard type (COMP) and a three-band divided (multi-band) master compressor have been built in. Using a master compressor allows you to reduce the overall dynamic range of the signal to fit the environment, and protect the sound system from overloads. A total of 8 memory scenes (3 read only and 5 user defined) allow settings to easily be stored and recalled as needed quickly.
